WE, JEC Ltd

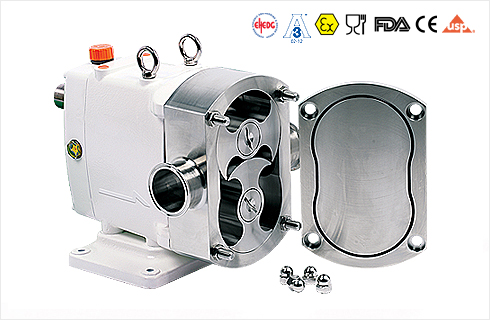

Rotary Pump JRZL

line

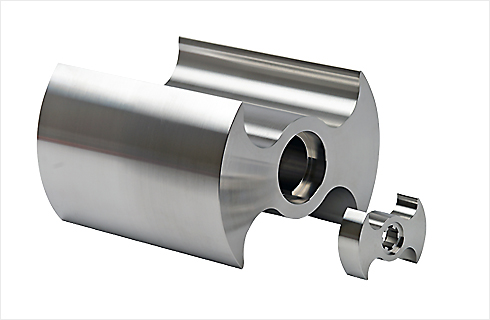

JRZL 560 ROTOR

You can always be sure of the greatest possible hygiene: ZL series are designed for broad applications spectrum covering dairies, foods, beverages, pharmaceuticals, cosmetics, bakeries, detergents, liquors, chemical industries and LCD/PDP manufacturing etc. They are designed specifically for conveying fluids in the low to high viscosity range with gentle product handling.

With high grade 0.6㎛Ra surface finish, unique seal and casing design, ZL series are suitable for Cleaning In Place (CIP) and offer exceptional levels of hygiene.
Wetted parts are made of SS 316L.

Our broad range of seal options such as mechanical seal, O-ring seal and Lip seal provides optimal solution for your need and application.
Optimal CIP is realized with O-ring position which minimizes dead-end between front cover and casing.

JEC always provides various rotors to meet diverse customer’s requirements (Single wing, Bi-wing, Bi-lobe, Tri-lobe, Multi-lobe, Heli-lobe and Spur gear). A variety of connection options are available such as SMS, RJT, DIN, ISO, Tri-Clamp and Flanges.
